Air filtration in the Levoit Core 200S is not a single process; it is a sequence of three physically distinct filtration mechanisms, each engineered to address a different category of airborne contaminant. Understanding each stage separately, what it captures, how it works physically and chemically, what it cannot do, and how its performance degrades over time, transforms the Core 200S from a “black box that cleans air” into a system whose behavior, maintenance needs, and limitations are predictable and manageable.
This guide builds from the physics and chemistry of filtration upward to the practical implications for performance, replacement timing, and the question of genuine versus third-party filter compatibility.

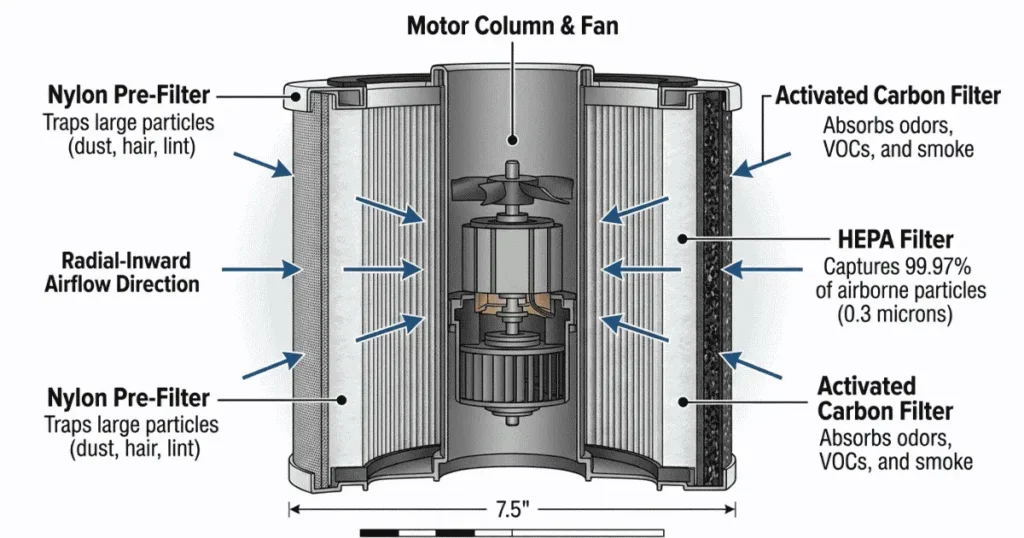

HOW THE THREE STAGES ARE ARRANGED IN THE CORE 200S
The three filtration stages in the Core 200S are arranged concentrically around the central motor column in the following order, from outermost (first air contact) to innermost (last air contact before reaching the motor):
1. Nylon pre-filter mesh outermost layer, visible on the exterior of the filter cylinder
2. H13 True HEPA fiber mat middle layer, bonded inside the filter cylinder
3. Activated carbon layer, the innermost layer, immediately adjacent to the motor column
Air enters through the 360-degree intake slots in the lower body perimeter, passes through these three layers sequentially as it moves inward toward the motor, and is then directed upward by the centrifugal fan and expelled through the top diffuser.
This inside-out filtration architecture, where air moves from the outer surface of the filter cylinder toward its inner surface, is a deliberate design choice. It distributes particle loading evenly across the full cylindrical surface area of the filter rather than concentrating it on a single face, which extends filter life relative to flat-panel filter designs of comparable media area.
STAGE 1: THE NYLON PRE-FILTER
Physical structure:
The outermost layer is a woven nylon mesh with a relatively coarse opening size, typically in the range of 50 to 200 microns. This is a mechanical barrier filter: particles larger than the mesh openings are physically blocked and cannot pass through.
What it captures:
- Pet hair and dander (large-scale)
- Human hair
- Lint and textile fibers
- Large dust particles and dust bunnies
- Large insect debris
What it does not capture:
- Fine dust (PM2.5 and smaller)
- Pollen
- Mold spores
- Smoke particles
- Odors or VOCs
Why it exists:
The pre-filter’s role is protective, not primary. By capturing large particles before they reach the HEPA layer, it prevents the HEPA fiber mat from becoming prematurely loaded with large debris that would restrict airflow without requiring the high capture efficiency that the HEPA layer provides. A HEPA filter loaded with pet hair performs the same filtration as one that isn’t, but its resistance to airflow (the “pressure drop” across the filter) increases, which reduces the volume of air the fan can move and decreases CADR.
The nylon pre-filter is the only washable component in the Core 200S filtration system. Washing it regularly every 2 to 4 weeks for pet owners, every 4 to 6 weeks for others is the single most impactful maintenance action for maintaining CADR over the filter’s service life.
Performance degradation mechanism:
As the pre-filter accumulates debris, the mesh openings partially occlude. This increases the pressure drop across the pre-filter stage, reducing airflow volume. A heavily loaded pre-filter can reduce the Core 200S’s effective CADR by 15 to 25% without any degradation of the HEPA layer itself. This is why pre-filter cleaning is functionally equivalent to a partial performance restoration.
STAGE 2: THEH13 TRUE HEPA LAYER
What “H13 True HEPA” means:
HEPA (High-Efficiency Particulate Air) is a filtration standard defined by the Institute of Environmental Sciences and Technology (IEST) and the European standard EN 1822. H13 is a specific grade within this standard:
H13 grade: Captures ≥99.97% of particles at the Most Penetrating Particle Size (MPPS) of 0.3 microns.
“True HEPA” as opposed to “HEPA-type” or “HEPA-like” indicates that the filter meets the actual H13 standard, not a marketing approximation of it. HEPA-type filters (commonly rated at 99% efficiency) capture significantly fewer particles in the 0.1 to 0.5 micron range, exactly the range most relevant to fine particulate health effects.
The 0.3 micron MPPS is not the smallest particle the filter captures; it is the particle size that is hardest to capture. Particles both larger and smaller than 0.3 microns are captured at higher efficiency:
- Particles larger than 0.3 microns are captured by inertial impaction and interception (larger particles can’t follow air stream curves around fibers and physically contact the fiber).
- Particles smaller than 0.3 microns are captured by diffusion (extremely small particles move erratically due to Brownian motion and randomly contact filter fibers despite following airstream paths).
- Particles at 0.3 microns are small enough to partially follow airstream paths but large enough that Brownian diffusion doesn’t reliably redirect them — this is the MPPS, and H13 grade still captures 99.97% of them.
What the HEPA layer captures:
- Fine dust (PM2.5 and PM10)
- Pollen (typically 10–100 microns captured at near 100% efficiency)
- Mold spores (typically 1–20 microns)
- Bacteria (typically 0.5–5 microns)
- Smoke particles (0.1–1 microns)
- Fine pet dander
- Dust mite allergens
What the HEPA layer does not capture:
- Gases and VOCs (volatile organic compounds) these pass through the fiber mat unimpeded
- Odors molecular in nature, not particulate
- Viruses (most viruses range from 0.02 to 0.3 microns, theoretically captured by the diffusion mechanism, but efficiency at the smallest end of this range is variable)
Physical structure:
HEPA media is a randomly oriented mat of borosilicate glass microfibers, typically 0.5 to 2 microns in diameter, compressed into a dense sheet. The Core 200S HEPA layer is formed into a cylindrical shape and bonded to the filter frame. It cannot be separated from the filter assembly for individual replacement.
Performance degradation mechanism:
HEPA filters don’t “wear out” in the traditional sense; the fibers don’t degrade chemically. They become less effective as the fiber mat loads with captured particles, increasing pressure drop and reducing airflow. Eventually, the reduction in airflow (and thus CADR) becomes the primary performance issue rather than any reduction in the filter’s per-particle capture efficiency. The Levoit 6–8 month replacement recommendation is calibrated to the airflow performance decline threshold, not a capture efficiency threshold.
STAGE 3: THE ACTIVATED CARBON LAYER
Physical structure and chemistry:
The activated carbon layer in the Core 200S is a bonded sheet of activated carbon that has been processed to create an extremely high internal surface area through a network of microscopic pores. A single gram of activated carbon typically has a surface area of 500 to 1500 square meters. This enormous internal surface area is what enables adsorption: gas molecules passing through the carbon make contact with the pore walls and adhere via van der Waals forces (weak intermolecular attractive forces), effectively being removed from the airstream.
The process is adsorption (surface adhesion), not absorption (bulk incorporation). This distinction matters because adsorption is reversible at elevated temperatures, and adsorbed molecules can desorb and re-enter the air. This is why activated carbon filters should not be exposed to high heat (leaving the air purifier in a hot car, for example), the stored VOCs can be released back into the room air.
What the carbon layer captures:
- VOCs (volatile organic compounds) formaldehyde, benzene, toluene, xylenes from furniture, flooring, and paints
- Odors from cooking, pets, and tobacco smoke residue
- Some chemical gases
What the carbon layer does not capture:
- Particulates (the carbon layer has too large a pore structure for particle capture at the HEPA scale)
- Carbon dioxide, nitrogen, oxygen (these molecules do not adsorb onto activated carbon under normal conditions)
- Particulate-phase pollutants (smoke particles are captured by HEPA; the smoke odor is captured by carbon these are separate mechanisms for the same pollutant source)
The Core 200S carbon limitation:
The activated carbon layer in the Core 200S is a thin bonded sheet, not a thick granular carbon bed. Thin sheet carbon has relatively limited adsorption capacity compared to granular carbon beds found in larger/more expensive purifiers. For light to moderate odor loads (typical household odors, light cooking smells, minor pet odor), the Core 200S carbon layer is effective. For heavy ongoing odor sources, heavy smokers, strong cooking odors generated multiple times daily, and significant VOC off-gassing from new furniture, the carbon layer will saturate more quickly and provide less effective odor control.
Performance degradation mechanism:
Unlike HEPA, activated carbon does genuinely “wear out” its adsorption capacity is consumed as the pores fill with adsorbed molecules. The rate of capacity consumption depends entirely on the VOC/odor load in the environment. In low-odor environments, the carbon layer may remain effective for the full 6–8 month filter life. In high-odor environments, it may become saturated and ineffective at odor removal within 3–4 months, while the HEPA layer is still performing well. There is no independent indicator for carbon saturation on the Core 200S; the filter life indicator tracks runtime hours and does not assess carbon remaining capacity.
HOW THE THREE STAGES INTERACT: THE SYSTEM LOGIC
The three stages are not independent; they interact in ways that affect overall system performance:
Pre-filter condition affects HEPA life: A clean pre-filter reduces the particle load reaching the HEPA layer, slowing HEPA loading and maintaining low pressure drop. A clogged pre-filter starves the entire system of airflow.
HEPA loading affects carbon effectiveness: As HEPA pressure drop increases, overall airflow through the unit decreases which reduces the volume of air exposed to the carbon layer per unit time, reducing VOC removal efficiency even before the carbon is saturated.
Carbon saturation gives a perceptible signal HEPA loading does not: When the carbon layer becomes saturated, odors that were previously removed begin to pass through. This is a detectable signal (the user can smell things they previously couldn’t). HEPA loading, by contrast, degrades silently; the filter looks dirty, but there is no perceptible signal when its performance has declined below the H13 threshold (which happens at the point of filter replacement, not gradually).
The practical implication: regular pre-filter cleaning extends HEPA life and maintains carbon effectiveness simultaneously. It is the highest-leverage maintenance action on the Core 200S. The correct washing technique is covered in the companion article How to Clean the Washable Nylon Pre-Filter on Levoit Core 200S.
FILTER REPLACEMENT: WHEN AND WHY
The Core 200S’s filter indicator illuminates at a fixed runtime interval, not based on measured filter condition. This means: In very dirty environments (high dust, heavy pet traffic, construction nearby), the filter may reach practical capacity, reduced CADR, or saturated carbon before the indicator illuminates.
In very clean environments, the filter at the indicator threshold may still have significant remaining capacity.
The indicator is a conservative baseline, not a precise measurement. The correct supplementary check is physical inspection of the pre-filter (heavy dark loading visible on the nylon mesh) and the odor test (persistent odors that were previously suppressed indicate carbon saturation). Full replacement guidance, including the genuine vs. third-party filter analysis, is covered in the companion guide Levoit Core 200S Replacement Filter Guide: Genuine vs. Third-Party Filters.
